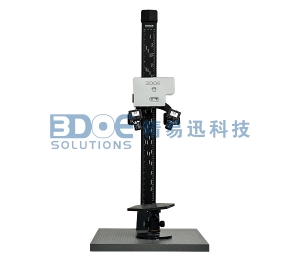

Principle:

3DOE scans complete surface of object, then achieve one-step measuring and digitizing by the means of computer-vision, photo-electricity sensor, graphics designer & software control.

Product’s functions:

Non-contact white light scanning, be adept in measuring both solid and soft objects.
Speedy scanning, capture at least 1 million pixels within 5 seconds.
High precision: 3DoE adopts high-end computer vision technology and own patent. Measuring precision is 0.02-0.05 mm without void point.
Portable machine, which can be delivered to work place lightly.
Work indoor or outdoor, without need of darkroom, flexible adaption with measure environment,
Hyperfocal distance, from 300 to 500 mm.
Automatic & precise assembly with multi-probes. Object can be moved & turned with random.
Rapid mesh capture, can get realistic surface of object.
Powerful & handy operational software, which patent is owned by our company.

Flexible data interface, supporting ASC, IGES, can be imported & exported with Pro/E, UG, Imageware, Geomagic , AutoCAD, etc.

Models and technical specifications:

Type	PTS-SO
Manner	Non-contact
Measuring Area	100 x 75 - 200 x 150 mm2
The largest measure scope	1000×750×750 mm3
Resolution	1.3M pixels
Measuring precision	0.015 ～ 0.03 mm
Measurement time	≤5s
Point Spacing	0.05～0.15 mm
Operation distance	300 ～ 2000 mm
File format	ASC, IGES, STL, VRML, DXF
Assembly	Auto
Computer	WindowsXP/win7

What we can do for you?

industrial design
toy
mobile phone and electronic
crafts
jewelry
buttons and jewelry design
Teaching application (Reverse Engineering)
precision castings
precision engraving
wood carving
